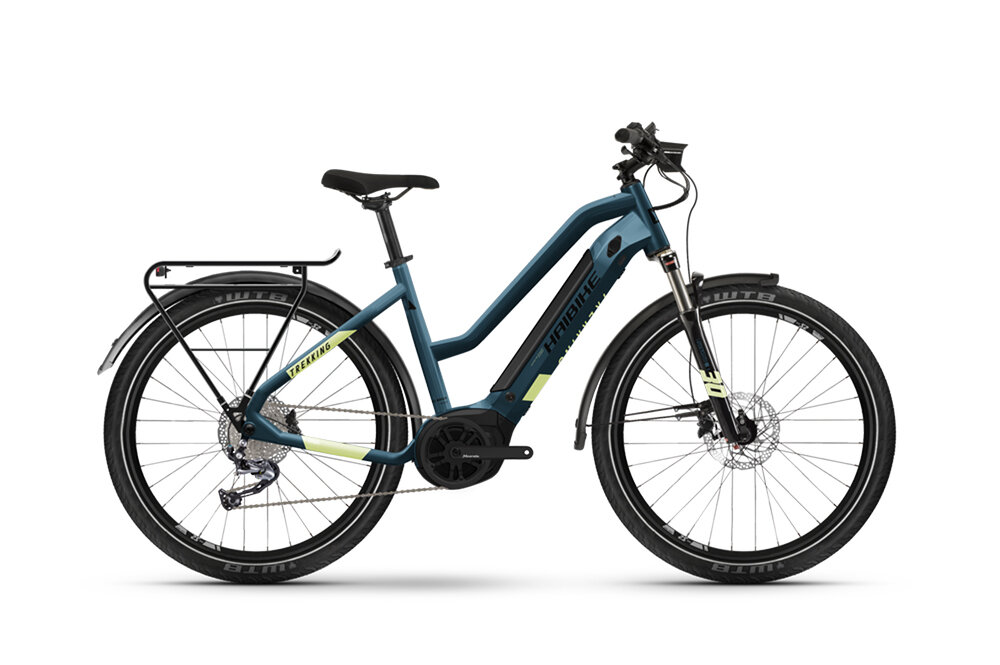

Haibike Trekking 5 midstep

FRAME MATERIAL

Aluminium

DRIVE UNIT

Bosch Performance Line, 65Nm, 25km/h

BATTERY

Bosch PowerTube 500Wh

FORK

SR Suntour XCM ATB HLO, Travel: 65mm

• • ENGINE

    Bosch, Performance Line , 250W, 65 Nm, 25 km/h

  • DISPLAY

    Bosch, Purion

  • BATTERY

    Bosch, PowerTube, 500 Wh

  • FRAME FAMILY

    Haibike, Trekking Gen3 Intube, Aluminium 6061

  • FORK

    SR Suntour, XCM ATB HLO, Lockout, Steel spring, Travel= 65 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  • CRANK ARM

    Haibike, forged, Aluminium

  • BRAKE (FRONT)

    Tektro, T275, 180 mm, 2-piston disc brake

  • BRAKE (REAR)

    Tektro, T275, 180 mm, 2-piston disc brake

  • TUBE

    Presta valve

  • RIM

    Schürmann, Yak25, with eyelets, hollow rim, Aluminium

  • CLAMPING RING

    Quick release, 34.9 mm

  • REAR DERAILLEUR

    Shimano, Alivio M3100

  • SHIFT LEVER

    Shimano, Alivio M3100, Trigger switch, 9 Speed

  • BOTTOM BRACKET

    Integrated in the motor

  • SPROCKET

    Shimano, HG200, 11 - 36 teeth

  • CHAIN

    KMC, e9S

  • CHAINRING

    Steel, 38 teeth

  • BRAKE LEVER

    Tektro, T275, Aluminium

  • BRAKE DISC (FRONT)

    Tektro, TR180

  • BRAKE DISC (REAR)

    Tektro, TR180

  • TYRE

    WTB, Groov-E, 61-584, 27.5" x 2.4"

  • FRONT WHEEL HUB

    Haibike, TheHub ++, 6-bolt standard

  • REAR WHEEL HUB

    Haibike, TheHub ++, 6-bolt standard

  • SPOKES

    Sapim, Leader, Black

  • HANDLEBAR

    XLC, Topflat, 720 mm

  • GRIPS

    XLC, Comfort bo3

  • STEM

    XLC, Alu, A-head

  • HEADSET

    Feimin, A-Head Tapered, Ball bearing

  • SADDLE

    Selle Royal, Wave

  • SEAT POST

    XLC, Aluminium, Patent, 31.6 mm

  • PEDALS

    VP, E461, Aluminium, with Reflector

  • HEADLIGHT

    Trelock, Bike - i Veo LS230, 20 lm

  • REAR LIGHT

    AXA, Juno Ebike

  • DYNAMO

    Via system battery

  • CARRIER

    Massload, System carrier

  • FENDERS

    Eurofender, Tempo, Chromoplastics

  • STAND

    Ursus, Mooi , Rear stand
