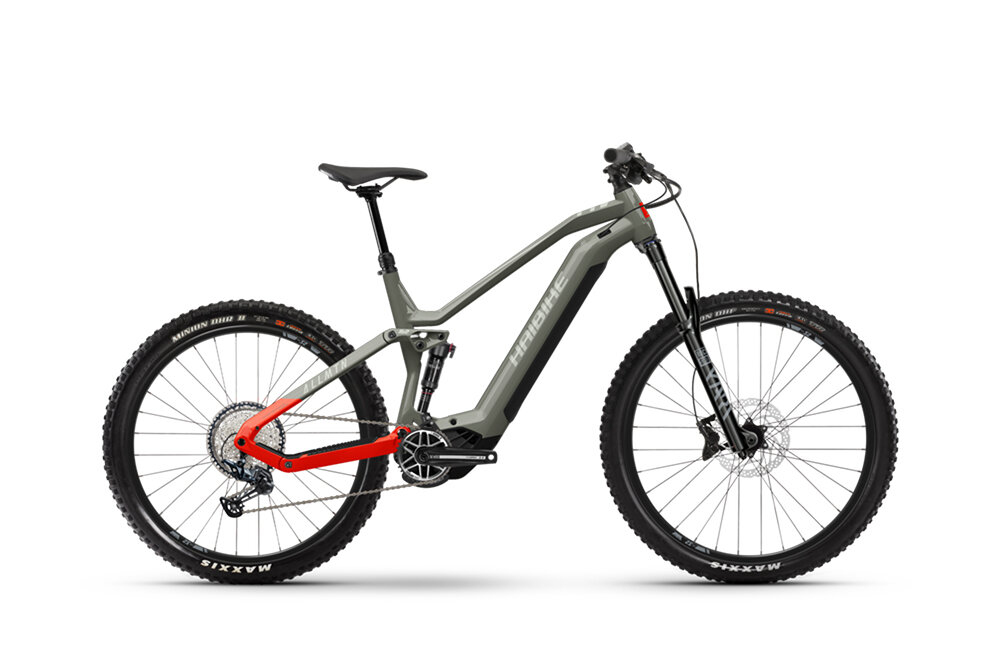

Haibike Allmtn 4

DRIVE UNIT

Yamaha PW-X3, 85Nm, 25km/h

FORK

RockShox Yari RC, Travel: 160mm

MIXED WHEEL SIZES

27.5" / 29"

BATTERY

In Tube 720

• ENGINE

  Yamaha, PW-X3, 250 W, 85 Nm

• DISPLAY

  Yamaha, Side Switch, 1.7" LCD, 7 functions

• BATTERY

  InTube, 720 Wh

• FRAME FAMILY

  Haibike, AllMtn PW-X3, Aluminium

• FORK

  RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

• DAMPER

  RockShox, Deluxe Select Plus, Air, Trunnion Mount

• CRANK ARM

  Haibike Components, The Crank ++, Aluminium

• BRAKE (FRONT)

  Shimano, M6120, Hydraulic disc brakes

• BRAKE (REAR)

  Shimano, M6120, Hydraulic disc brakes

• TUBE

  Presta valve

• RIM

  WTB, ST i30 TCS, Double Wall

• CLAMPING RING

  Internal hexagon, 38.1 mm

• REAR DERAILLEUR

  Shimano, SLX M7100

• SHIFT LEVER

  Shimano, Deore SLX M7100

• BOTTOM BRACKET

  integrated in the motor

• SPROCKET

  Shimano, M6100, 10 - 51 teeth

• CHAIN

  Shimano, CN-M6100

• CHAINRING

  Haibike Components, Aluminium, 36 teeth

• CHAIN GUIDE

  Nylon directmount

• BRAKE LEVER

  Shimano, Deore M6100, Aluminium

• BRAKE DISC (FRONT)

  Shimano, RT30-L, 203 mm

• BRAKE DISC (REAR)

  Shimano, RT EM300L, 203 mm

• TYRE

  Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch

• FRONT WHEEL HUB

  Shimano, MT410-B, Centerlock

• REAR WHEEL HUB

  Shimano, MT410, Centerlock

• SPOKES

  Sapim, Race

• HANDLEBAR

  Haibike Components, TheBar +++, 780 mm

• GRIPS

  Haibike, MTB grips

• STEM

  Haibike Components, TheStem +++, 31.8 mm

• HEADSET

  Acros, BlockLock, Aluminium

• SADDLE

  Selle Royal, Vivo

• SEAT POST

  Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm

• PEDALS

  Freeridepedal, Aluminium, with Reflector

• PERMITTED TOTAL WEIGHT

  150.0 kg

• TYRE (REAR)

  Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch

• RIM (REAR)

  WTB, ST i35 TCS, Double Wall

• GEOMETRY



  FRAME SIZE (I.E. S, M, ...)	S	M	L	XL
  AFRAME HEIGHT (CM)	41.0 cm	44.0 cm	47.0 cm	50.0 cm
  BSEAT TUBE ANGLE	75.0 degrees	75.0 degrees	75.0 degrees	75.0 degrees
  CSEAT TUBE OFFSET (MM)	23.0 mm	23.0 mm	23.0 mm	23.0 mm
  DSEAT ANGLE	77.0 degrees	77.0 degrees	77.0 degrees	76.9 degrees
  EHEAD TUBE LENGTH	120.0 mm	120.0 mm	130.0 mm	140.0 mm
  FHEAD TUBE ANGLE (DEGREES)	64.5 degrees	64.5 degrees	64.5 degrees	64.5 degrees
  GTOP TUBE HORIZONTAL	570.0 mm	600.0 mm	627.0 mm	659.0 mm
  HCHAIN STAY LENGTH	460.0 mm	460.0 mm	460.0 mm	460.0 mm
  IBOTTOM BRACKET DROP	-20.0 mm	-20.0 mm	-20.0 mm	-20.0 mm
  JWHEELBASE	1220.0 mm	1250.0 mm	1279.0 mm	1313.0 mm
  KSTACK	646.0 mm	646.0 mm	655.0 mm	664.0 mm
  LREACH	421.0 mm	451.0 mm	475.0 mm	505.0 mm
