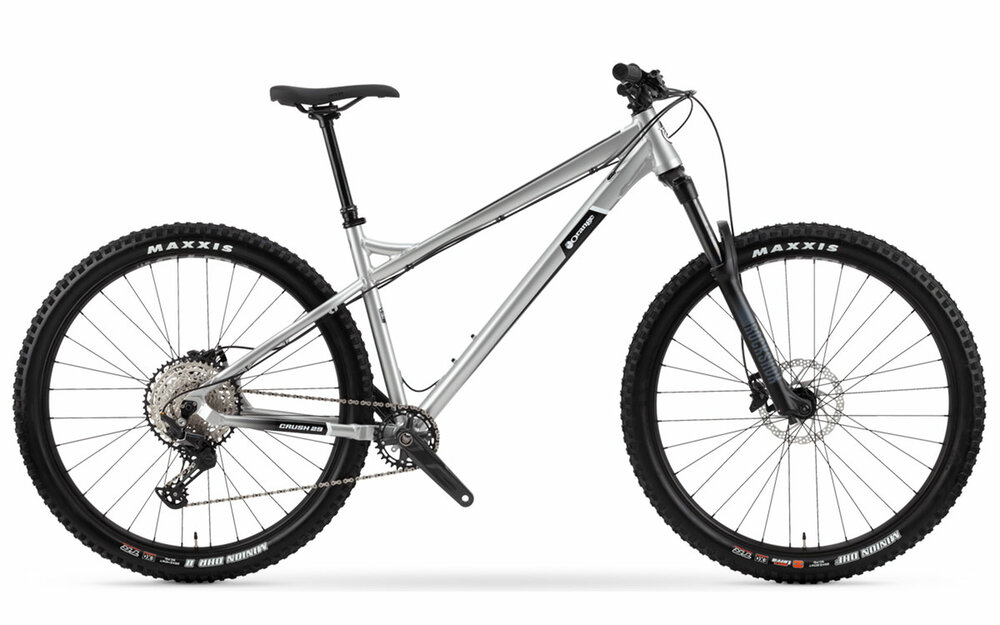

Orange CRUSH 29 COMP 2023

£2,199.00

WHY THE CRUSH 29? F: 140MM | W: 29 Brand New Frame designed in Britain 5 year frame warranty with Limited Lifetime Crash Replacement Custom butted 6061-T6 aluminium frame Frame geometry for 140mm travel reduced offset fork

Size

l m xl

In Stock

Features

FRAME AND FORK

6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.

Headset

FPD 44mm / 56mm zerostack

Fork

RockShox 35 Silver TK 140mm 29

Swingarm

Bolt Type Allen Key Head (Boost 12 x 148mm Hub)

DRIVETRAIN

Bottom Bracket

Shimano Hollow Tech II

Crankset

Strange Prowheel MPX 170mm Narrow Wide 32t

Rear Mech

Shimano Deore 12spd

Chain

KMC 12spd

Shifters

Shimano Deore 12spd

Cassette

Sunrace CSMZ600 11-51t 12spd

WHEEL AND TYRES

Wheelset

WTB ST i30 on Strange 29

Tyres

Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29

BRAKING

Brakes

Shimano MT401 180/180

FINISHING KIT

Seatpost

KS Ragei 150/170mm Drop

Seat Clamp

Strange Bolted

Stem

Strange Stalk 40mm

Saddle

WTB Volt Steel

Handlebars

Strange 1" Rise 780mm

Grips

Strange Grappler Lock-On

GEOMETRY & TECH INFO

CRUSH GEOMETRY

6061-T6 Custom Butted OS Aluminium Tube
Frame Size	M	L	XL
Seat Tube Length	17"	18"	20"
A. Head Angle	64.5°	64.5°	64.5°
B. Seat Angle	75.5°	75.5°	75.5°
C. Top Tube	643	658	675
D. Top Tube (effective)	630	652	675
E. BB Height (from ground)	310	310	310
E. BB height (axle DIFF)	-68	-68	-68
F. Chainstay	445	445	445
G. Headtube	120	130	140
H. Wheel base	1229	2154	1278
J. Reach	460	480	500
K. Stack	657	666	675
O. Fork Offset	44	44	44
Standover	691	708	749
Stem length	50	50	50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 756 mm Ø tyre.
