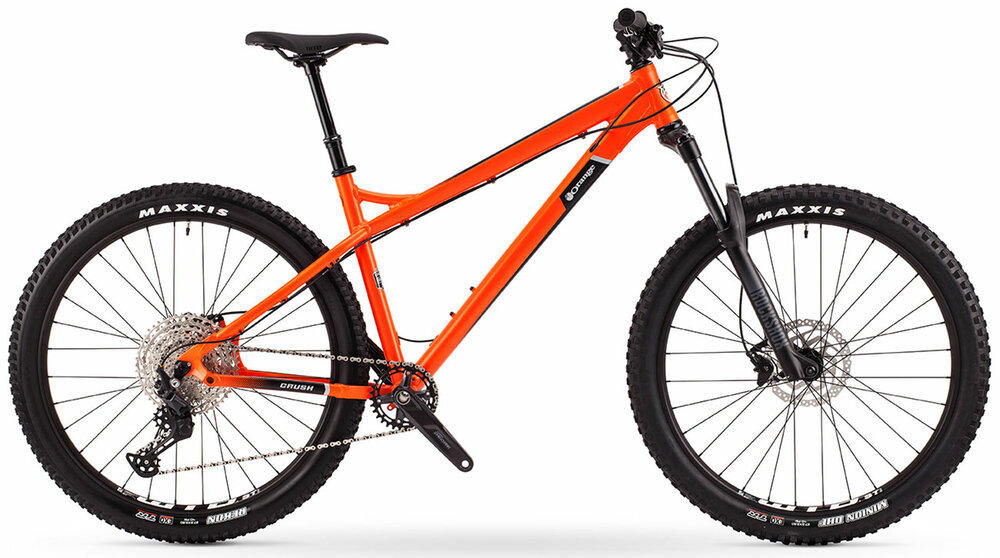

Orange crush 27.5 2021

The frame is bang on point, the rear triangle features a 148 Boost bolt-through axle, giving unparalleled stability to what is already a strong and rigid chassis. The model's geometry runs a 64° head angle which, matched with the Crush’s long top-tube design, adds an extra degree of confidence in the handling. With a short 50mm stem the rider is right where they need to be for direct control and weight distribution. Short chainstays make climbing as sweet as ever for a long-forked hardtail, those stays now reshaped with a CNCed yoke on the chainstay to allow plenty of clearance for a more than chunky 2.6 tyre.

The Crush’s unshakeable attitude is as strong as ever. Built tough to be ridden hard, where it really excels, on the rough stuff.

Why The Crush?

• New Frame designed in Britain
• 5 year frame warranty with Limited Lifetime Crash Replacement
• Custom butted 6061-T6 aluminium frame
• Frame geometry for 150mm travel fork
• Bolt through 12 x 148 hub spacing
• Yoked chainstay design gives clearance for 27.5 2.6 tyres
• 73mm BB Shell with ISCG 05 tabs
• Minimal design cable & hose guides

Specifications

Frame and Forks

• Frame: 6061-T6 Custom Butted OS Aluminium Tube
• Forks: RockShox 35 Silver TK 150mm 27.5
• Headset: FPD 44mm For Tapered Steerer

Drivetrain

• Crankset: Shimano M511-1 32 Tooth
• Chainrings: Shimano M511-1 32 Tooth
• Bottom Bracket: Shimano Hollow Tech II
• Rear Derailleur: Shimano Deore 12 Speed
• Freewheel: Shimano Deore 10-51T 12 Speeed
• Chain: KMC 11 Speed

Braking/Shifting

• Shifters: Shimano Deore 12 Speed
• Brakes: Shimano MT401 180mm / 180mm

Wheels

• Wheelset: WTB ST i30 on Strange
• Tyres: WTB Vigilante 2.6 and Trail Boss 2.6 27.5

Finishing Kit

• Handlebars: WTB Vigilante 2.6 and Trail Boss 2.6 27.5
• Grips: Strange 130 Single Lock-On Black
• Stem: Kona XC/BC 35
• Seatpost: KS Ragei 150mm Drop
• Seat Clamp: Strange Bolted
• Saddle: Strange Stalk 40mm
