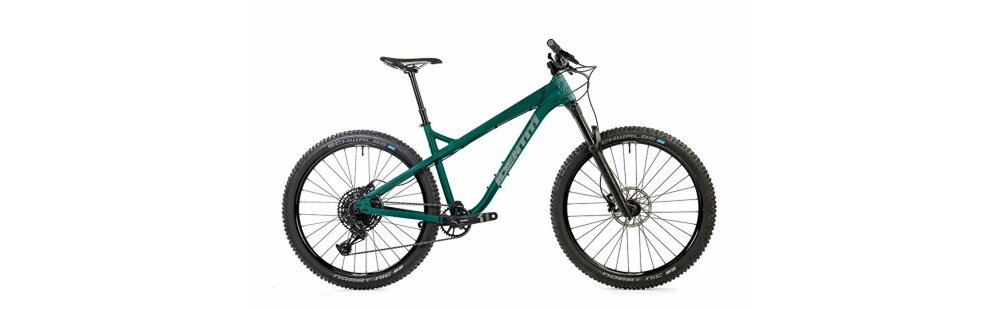

Identiti AKA SX 29 2022

The AKA is a proper mountain bike. A pedal up, pedal along, blitz down kind of affair with familiar geometry inspired by the big-hitting Mettle. Take it to the flow trails at your local trail centre, go off-piste, or take it to your local bmx track – it’ll put a smile on your face.

You’d think making a hardtail was as simple as picking a few decent geometry numbers, throw it together and away you go… if only it was that easy. In fact, hardtails get steeper at sag, so we put a package together that ticks all the boxes with that in mind. A slack head angle, and comfortable seat tube angle, and a low bottom bracket put you ‘in’ the bike and in the thick of it. The AKA is the culmination of years of design experience, tweaking, and adapting the design until we were happy.

Chuck a set of 27.5″ wheels in it with a 140mm fork, or some 29″ wheels with a 120mm fork. The same frame can handle both without sacrifice allowing for unlimited potential. With tyre clearance up to 2.6″ and multiple water bottle mounts, and an adjustable drop out for running it singlespeed…

Features

• 6000 Series alloy tube set
• Geometry designed around sag
• 3 sizes, small, medium and large
• Max tyre size 2.6 (65mm measured on 28 internal rim)
• Triple bottle cage mount inside the front triangle for adjustable bottle placement or extra storage for longer adventures and 1 bottle cage mount under the downtube.
• Custom designed ADS sliding drop outs with built in hidden tensioner for single speed use
• 1x Only cable routing
• 12 x 148 boost drop outs
• Threaded Bottom bracket with ISCG 05 tabs
• Stealth dropper post routing

Specifications

• ForkRockshox 35' Gold RL 140mm/120mm
• HeadsetGusset S2
• HandlebarGusset Slade 19mm/780mm
• StemGusset Magnum 50mm
• GripsGusset Single File
• SaddleGusset R-Series
• SeatpostKS e30i 150mm
• Chain GuideMRP 1x CS Guide
• Rear DerailleurSRAM SX Eagle 12 Speed
• Gear LeversRH - SRAM SX Eagle 12 Speed
• ChainSRAM SX Eagle 12 Speed
• CranksetSRAM X1 170mm 34t
• CassetteSRAM SX Eagle
• Bottom BracketSRAM DUB
• BrakesSRAM Level with Centerline 180mm Rotors
• WheelsHalo Ridgeline 29" Boost
• TyresNobby Nic Addix Soft Snake Skin 2.35
