Scott E-Scale 940 2018

£2549.00 Check Availability
Reset Options

Display

csm_Bosch-eBike-Purion_8dc9d6aba7

Bosch Purion Display

Electirc Motor

Bosch Performance CX 250w

Battery

Bosch Performance CX 500wh Battery

Range & Speed

30 – 140 Power Assisted Miles*



Electric Assistance up to 15 mph

Scott electric bike logo - rightbike

The all NEW SCOTT E-Scale 940 features proven electric assist technology in a comfortable offroad package. ePowered by a 500wh Bosch drive system, the E-Scale will provide you with hours of trail riding energy. Available in the 29″ wheel size.

Product Details - Scott E-Scale 940 2018

BOSCH eMotor - Performance Line CX

Direct flow  Perfect support as soon as you step onto the pedals means that starting on steep slopes is significantly easier.

No trigger – Thanks to the new eMTB mode, there is no need to change support modes, so the rider can concentrate fully on the trail.

Trail Control – Enables effortless riding and optimal traction thanks to improved control, even on challenging uphill sections or when encountering difficult obstacles.

Maximum momentum – A torque of up to 75 Nm ensures sporty acceleration even in alpine terrain, without changing gear.

More walk-assistance power – Stronger support up to speeds of 6 km/h makes pushing your bike much easier. Available from autumn 2017 and backwards compatible for all Performance Line CX systems.

eMTB mode – For a powerful start uphill and in rough terrain. Improved moving-off behaviour guarantees optimal support in all terrains and on any trail. Noticeably easier, sporty starting as soon as you step onto the pedals.

BOSCH DISPLAY- Purion

Clear display – Charging status, speed, riding mode, range, trip distance, total distance

Optimum legibility – The display without play lighted from behind enables recognising all riding data.

Service – The optional service interval display reminds you about fixing the next service appointment for your eBike with the specialist dealer.

Easy diagnosis – The specialist dealer can monitor the status of your Bosch eBike System via the micro USB interface.

Focus on the essentials – Five support steps, safe operation with thumbs, neat handle bar.

Assistance Levels – The rider can choose between four different modes:

  • Eco: Effective, but gentle support, designed for maximum efficiency for long ranges.
  • Tour: Uniform support for long stretches, with clear focus on long ranges.
  • Sport/eMTB*: Immediate, powerful support for sports riding on natural terrain and even in city traffic.
  • Turbo: Direct and maximum powerful support up to the highest pedalling rates for sports riding.

*The eMTB mode, specially designed for the Performance Line CX, dynamically varies between the Tour and Turbo riding modes, progressive motor support for maximum performance on the trail.

BOSCH Battery - 500Wh

The Bosch PowerPack 500 is the same size as and only slightly heavier than the PowerPack 400 but extends the range. The Lithium-ion battery requires about two hours to charge 50% and the PowerPack 500 takes approx. 4.5 hours to charge with the Bosch Standard Charger. In favourable conditions, charged and with the Performance Line Cruise in the mix, tours of up to 90 kilometres are possible. The PowerPack 500 is available for all product lines as a frame or rack battery.



 Compact Charger  Standard Charger
50% charge  3.75 h 2.25 h
100% charge 7.5 h 4.5 h

Specifications - Scott E-Scale 940 2018

Product Specifications

MotorBosch Performance CX 250W Motor - 25 km/h
BatteryBosch Performance 500wh Battery
DisplayBosch Purion Display, 4 mode selectable, walk assist
FrameE-Scale 900 / 6061 Alloy custom butted tubing / internal cable routing 148x12mm IDS SL drop out
ForkSR Suntour XCR32 Air 100mm / RL
Travel-
Rear Shock-
BrakesShimano BR-M315 Disc SM-RT10 CL Rotor Front: 180mm / Rear: 160mm
Brake Rotors-
Brake Levers-
ShiftersShimano SL-M2000
SaddleSyncros XM2.5
SeatpostSyncros M3.0 31.6mm
Bottom Bracket-
CranksetFSA / 15T
Chain Chain KMC X9
Front Derailleur-
Rear DerailleurShimano RD-M2000 / 9 Speed
Freewheel-
CassetteShimano CS-HG200-9 / 11-37
HandlebarSyncros M3.0 / 720mm black / 31,8mm / 12mm rise / 9° BS
Handlebar StemSyncros M3.0 / 7° / Black
HeadsetSyncros OE / Tapered 1.5" - 1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Wheelset-
Rims700 Series: Syncros X-30S / 32H / 30mm Tubeless ready 900 Series: Syncros X-25 / 32H / 25mm Tubeless ready
Tires700 Series: Maxxis Rekon / 2.80 x 27.5 / 120TPI Kevlar Bead EXO / TR Tubeless ready Front: 3C Maxx Terra / Rear: 3C Maxx Speed 900 Series: Maxxis Forekaster / 2.35 / 60TPI Kevlar Bead Dual compound
Hubs-
Hub (front)Shimano HB-M3050 / 5x100mm
Hub (rear)Formula CT 1702 141x5mm
SpokesStainless Black
Chainwheel-
Grips / Bartape-
Mudguards-
Rear Carrier-
Rack-
Pedals-
Lock-
Kickstand-
Lights-
Approx Weights In Kg-
Approx Weights In Lbs-

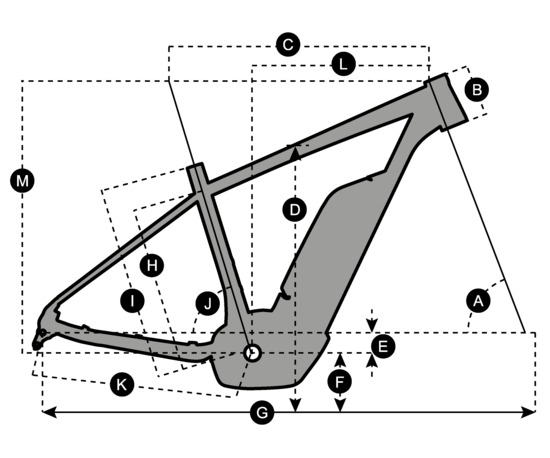

Frame Geometry - Scott E-Scale 940 2018

S M L
A head tube angle 67.5 ° 67.5 ° 67.5 °
B head tube length 110.0 mm 4.3 in 115.0 mm 4.5 in 120.0 mm 4.7 in
C top tube horizontal 570.0 mm 22.4 in 600.0 mm 23.6 in 625.0 mm 24.6 in
D standover height 758.3 mm 29.9 in 781.0 mm 30.7 in 811.1 mm 31.9 in
E BB offset -39.0 mm -1.5 in -39.0 mm -1.5 in -39.0 mm -1.5 in
F BB height 317.5 mm 12.5 in 317.5 mm 12.5 in 317.5 mm 12.5 in
G wheel base 1,132.3 mm 44.6 in 1,162.8 mm 45.8 in 1,188.3 mm 46.8 in
H BB center to toptube center
I BB center to top of seattube 400.0 mm 15.7 in 440.0 mm 17.3 in 490.0 mm 19.3 in
J seat angle 72.8 ° 72.8 ° 72.8 °
K chainstay 470.0 mm 18.5 in 470.0 mm 18.5 in 470.0 mm 18.5 in
L reach 391.6 mm 15.4 in 420.2 mm 16.5 in 443.7 mm 17.5 in
M stack 576.4 mm 22.7 in 581.0 mm 22.9 in 585.6 mm 23.1 in
N stem length 50.0 mm 2.0 in 60.0 mm 2.4 in 70.0 mm 2.8 in
0 trail

Sizing Guide - Scott E-Scale 940 2018

Finding you the right size bike is just as important as the type of bike you want. Getting the wrong size bike can ruin anyone ride.

We always recommend that you visit us in store (find us here) where we can measure you and make sure you get the right size bike.

To give you a quick guide please see the size guide to the right.

We also offer a free bike set up using our … . This system uses state of the art lasers and software to make sure your bike is precisely set up to give you the best riding experience.

Scott 2016 Bike Sizing Chart
