Scott E-Scale 720 Plus 2017

  • E-Scale 700 plus 6061 Alloy Frame
  • Shimano XT 10 speed Drivet rain
  • Rock Shox Recon Silver 120mm
  • Syncros Components
  • Syncros Dropper 2.5
£3199.00 Check Availability
Reset Options
Please complete options above before adding to your basket

Display

Bosch Intuvia Display

eMotor

Bosch Performance CX 250w

Battery

Bosch Performance CX 500wh Battery

Range & Speed

30 – 140 Power Assisted Miles*

Electric Assistance up to 15 mph

Scott electric bike logo - rightbike

The all NEW SCOTT E-Scale 720 Plus Ultimate is here to make some waves. We’ve strapped a 500wh Bosch Performance engine onto what we think is MTB’s rowdiest hardtail, creating a bike that is sure to put a grin on your face. Climb up any trail, put down the dropper post, and point it back down, this is going to be fun.

BOSCH eMotor - Performance Line CX

The drive complies with all road regulations and its compact design has the additional advantage in that it is attached to the bottom bracket, giving the bike an optimal center of gravity. The drive unit is equipped with an electronic control system with three sensors for force, cadence and speed, ensuring optimal coordination.

1000 sensor measurements per second

More powerful electronics with a modern 32-bit processor

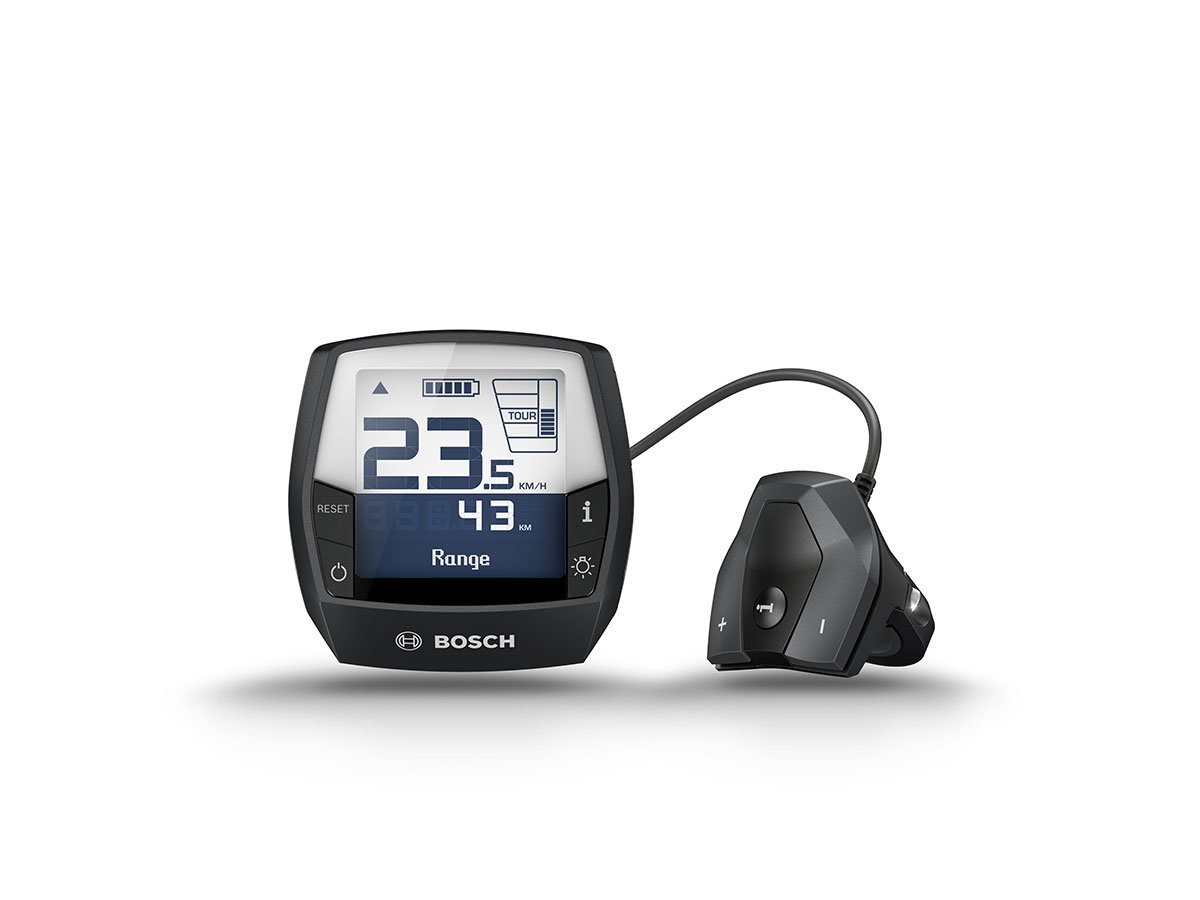

BOSCH DISPLAY- Intuvia

High-tech on the handlebars. The small control panel permits the rider to control any integrated areas on the bike. The Assistance Level and the light function can be controlled and selected. Furthermore, the small screen displays the current battery status, the coverage in kilometers and includes the functions of a conventional bicycle computer. With a highly precise wheel diameter setting even after changing wheels, users can make fine adjustments at the push of a button.

Assistance Levels

The driver has the option of deciding between four different modes:

Eco: Higher level of autonomy.Maximum coverage

Tour: Medium level of autonomy.Standard Mode

Sport: Supported acceleration level

Turbo: Maximum engine support

BOSCH Battery - 500Wh / 36v

The battery is impressively easy to use. Thanks to an integrated locking system, the battery can be removed and re-attached just like any “plug &play” device and can be completely charged in its own charger in a record time of only 3 hours. Other features:

Convenient charging is now possible directly on the e-bike

Separate charging status display

Ion-Lithium battery technology

Depending on the terrain and rider performance, up to 160 km range (on 500Wh capacity)

36 Volt

Weight 2.5kg

Specifications

COLOR Black/Grey/Orange/Blue
FRAME SIZES
 S M L XL
FRAME  E-Scale 700 plus / 6061 Alloy custom butted tubing / internal cable routing 148/12 IDS SL drop out
FORK  Rock Shox Recon Silver RL Solo Air 15x110mm QR axle / Tapered Steerer / Reb. Adj. Remote Lockout / 120mm travel
REAR SHOCK  –
TRAVEL  –
HEADSET  Syncros OE / Tapered 1.5″ – 1 1/8″ semi integ. OD 50/61mm / ID 44/55mm
REAR DERAILLEUR  Shimano RD-M7000-SGS DM / Shadow Plus / 10 Speed
SHIFTERS  Shimano Deore SL-M610 / Rapidfire Plus 2 way release w/gear indicator
BRAKES  Shimano M506 Disc 180/F and 180/R SM-RT54 CL Rotor
CRANKSET  Miranda Boost 15T
HANDLEBAR  Syncros FL2.0 T-Bar Alloy 6061 D.B. / T shape Flat / 9° / 740mm
HANDLEBAR STEM  Syncros FL2.0 6061 Alloy oversize 31.8mm / 1 1/8″ / -6°
PEDALS  –
SEATPOST  Syncros Dropper 2.5 / YSP15 ICR / Remote 31.6mm / 120mm
SADDLE  Syncros XM2.5
HUB (FRONT)  Shimano Deore HB-M618-B
HUB (REAR)  Shimano Deore FH-M618-B
CHAIN  KMC X10
CASSETTE  Shimano CS-HG50-10 11-36 T
SPOKES  DT Swiss Champion
RIMS  Syncros X35 / 32H / 35mm Tubeless ready
TIRES  Maxxis Rekon / 2.80 x 27.5 / 60TPI TR Tubeless ready
APPROX WEIGHTS IN KG  20.90
APPROX WEIGHTS IN LBS  46.08
MOTOR  Bosch Performance CX 250w
BATTERY  Bosch Performance 500wh Battery
DISPLAY  Bosch Intuvia Display

Frame Gemetry

 S  M  L  XL
A HEAD TUBE ANGLE 67.5 ° 67.5 ° 67.5 ° 67.5 °
B HEAD TUBE LENGTH 110.0 MM 4.3 IN 115.0 MM 4.5 IN 120.0 MM 4.7 IN 130.0 MM 5.1 IN
C TOP TUBE HORIZONTAL 570.0 MM 22.4 IN 600.0 MM 23.6 IN 625.0 MM 24.6 IN 650.0 MM 25.6 IN
D STANDOVER HEIGHT 775.4 MM 30.5 IN 797.3 MM 31.4 IN 826.9 MM 32.6 IN 858.7 MM 33.8 IN
E BB OFFSET -46.0 MM -1.8 IN -46.0 MM -1.8 IN -46.0 MM -1.8 IN -46.0 MM -1.8 IN
F BB HEIGHT 317.5 MM 12.5 IN 317.5 MM 12.5 IN 317.5 MM 12.5 IN 317.5 MM 12.5 IN
G WHEEL BASE 1,141.0 MM 44.9 IN 1,171.5 MM 46.1 IN 1,196.9 MM 47.1 IN 1,222.9 MM 48.1 IN
H BB CENTER TO TOPTUBE CENTER
I BB CENTER TO TOP OF SEATTUBE 400.0 MM 15.7 IN 440.0 MM 17.3 IN 490.0 MM 19.3 IN 540.0 MM 21.3 IN
J SEAT ANGLE 72.8 ° 72.8 ° 72.8 ° 72.8 °
K CHAINSTAY 473.0 MM 18.6 IN 473.0 MM 18.6 IN 473.0 MM 18.6 IN 473.0 MM 18.6 IN
L REACH 612.0 MM 24.1 IN 616.7 MM 24.3 IN 621.3 MM 24.5 IN 630.5 MM 24.8 IN
M STACK 380.5 MM 15.0 IN 409.1 MM 16.1 IN 432.7 MM 17.0 IN 454.8 MM 17.9 IN
N STEM LENGTH 50.0 MM 2.0 IN 60.0 MM 2.4 IN 70.0 MM 2.8 IN 80.0 MM 3.1 IN
0 TRAIL

Sizing Guide

Find you the right size bike is just as important as the type of bike you want. Getting the wrong size bike can ruin anyone ride.

We always recommend that you visit us in store (find us here) where we can measure you and make sure you get the right size bike.

To give you a quick guide please see the size guider to the left.

We also offer a free bike set up using our … . This system uses state of the art lasers and software to make sure you bike is precisely setup to give you the best riding experience.

Scott 2016 Bike Sizing Chart
