Merida eBig.Tour 300 2018

£2500.00 Check Availability
Reset Options
Please complete options above before adding to your basket

Display

Shimano Steps-SC-E6010

Shimano Steps Display

E6010

Electirc Motor

Shimano Steps-DU-E6050

Shimano Steps Motor

E6000

Battery

Battery: Shimano Steps E6010

Shimano Steps Battery

E8010 500Wh

Range & Speed

30 – 140 Power Assisted Miles*



Electric Assistance up to 15 mph

Merida eBig.Tour 300 2018

Product Details - Merida eBig.Tour 300 2018

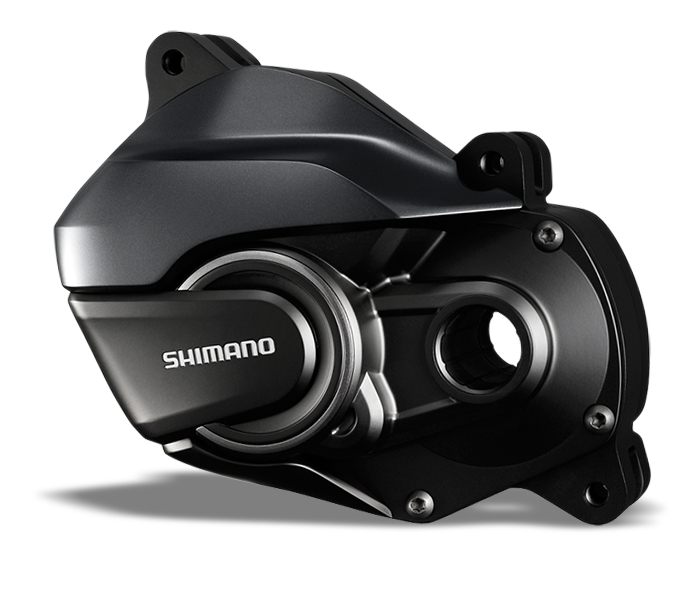

Shimano Steps Motor E6000

Smooth, silent motor packaged in a compact, lightweight design for a sleek look and supreme riding performance.

  • One of the lightest, most compact motors on the market.
  • Strong yet intelligent pedalling support for a solid, natural feel.
  • Incredibly easy to operate.
  • Very durable to handle all weather conditions.

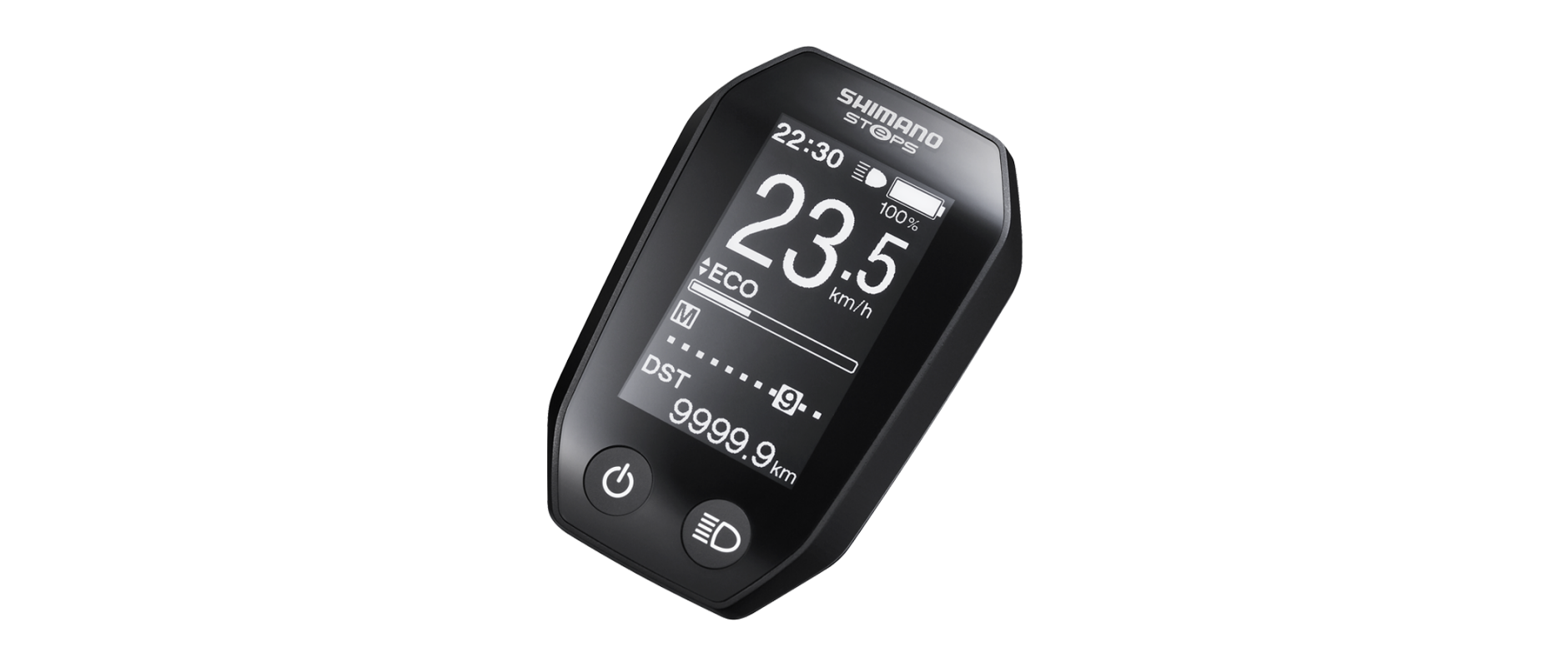

Shimano Steps Display E6010

Sleek bar-mounted cycling computer with easy-to-read high-contrast display. Partnered with ergonomic switch unit with intuitive design.

  • The easy-to-read computer has every function you’ll need for a successful outing.
  • Computer functions include speed, distance, trip time, clock, gear, estimated range, battery indication.
  • Accurate, reliable, supple switching between all three power-assist modes regardless of weather conditions.

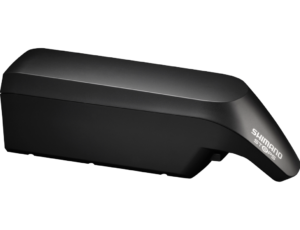

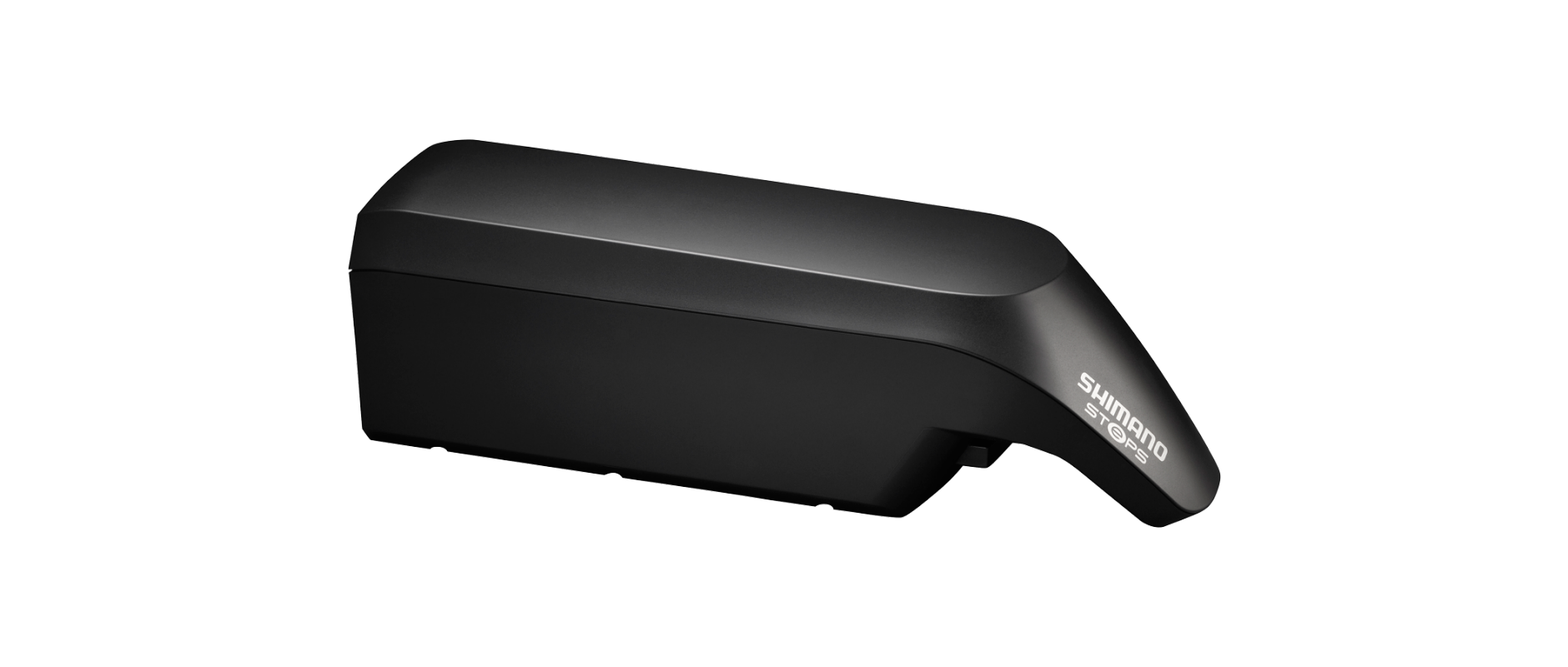

Shimano Steps Battery E8000 500Wh

Ultra-durable, powerful battery specially designed for the rigors of mountain biking.

  • MTB-dedicated compact, low profile design for improved impact and vibration resistance.
  • High capacity long-lasting Li-Ion battery of 504 Wh to cover more territory.
  • Supported travel up to 100 km on one charge.
  • 1,000 charge cycles with no significant power loss.
0-80% charge time 2.5 Hours
0-100% charge time 5 Hours

Features - Merida eBig.Tour 300 2018

PROLITE 66 TRIPLE BUTTED ALUMINUM 2018
Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.

X-TAPER HEADTUBE 2018
Using a tapered head tube with 1 1/8″ bearings in the top and 1 1/4″ or 1 1/2″ in the bottom creates superb stiffness and precise, confidence inspiring steering.

SMOOTH WELDING 2018
Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance you will be convinced it is carbon.

INTERNAL CABLE 2018
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY 2018
Cables, housings and brake hoses are clamped under tension to prevent rattling when the trail gets rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

DI2 READY 2018
Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

LOCK-OUT 2018
The suspension fork and/or rear shock can be locked, either directly or via a ‘remote control’ lever on the handlebar.

POST-MOUNT DISC 2018
Post mount disc brake calipers fit directly onto the seat stay for a strong and light connection whilst a chainstay post mount positions the caliper on the chainstay within the rear triangle for extra protection and better distribution of braking forces. Another benefit is that internal cable routing is also easier and neater via the chainstay.

F-MOUNT 2018
‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.

K-MOUNT DROP-OUT 2018
Integrated mount on the chainstay to fit a MERIDA kick stand.

C-MOUNT 2018
‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Specifications - Merida eBig.Tour 300 2018

Product Specifications

MotorShimano Steps Motor E6000
BatteryShimano Steps Battery E8010 500Wh
DisplayShimano Steps Display E6010
FrameHydro formed Prolite 66 aluminium with a more comfort focused geometry. Available in 29er or 650B wheel size. With internal cable routing for a clean look and protection of gear cables and brake hoses
ForkSuntour XCM-ATB HLO, 100mm travel, lockout
Travel-
Rear Shock-
BrakesShimano M315 hydraulic disc brakes, 180mm centre lock rotors
Brake Rotors-
Brake Levers-
ShiftersShimano Altus, 9 speed, rapidfire
SaddleCrossway Comfort
SeatpostMerida Comp SB0 30.9mm
Bottom Bracket-
CranksetShimano E6000/CRE60 38 tooth with double chain guard
ChainKMC X9
Front Derailleur-
Rear DerailleurShimano Altus RD-M2000
Freewheel-
CassetteShimano HG300, 9 speed, 12-36 teeth
HandlebarMerida Comp Oversize clamp, 12mm rise, 700mm wide
Handlebar StemMerida Comp Oversize clamp 15 deg
Headset-
Wheelset-
RimsMerida Comp CC
TiresMaxxis Ikon 29 2.2 folding + EXO Protection
HubsShimano TX505 centre lock
Hub (front)-
Hub (rear)-
SpokesBlack stainless steel
Chainwheel-
Grips / BartapeMerida Expert EC
Mudguards-
Rear Carrier-
Rack-
PedalsXC pro alloy
Lock-
Kickstand-
Lights-
Approx Weights In Kg20.70 kg
Approx Weights In Lbs-

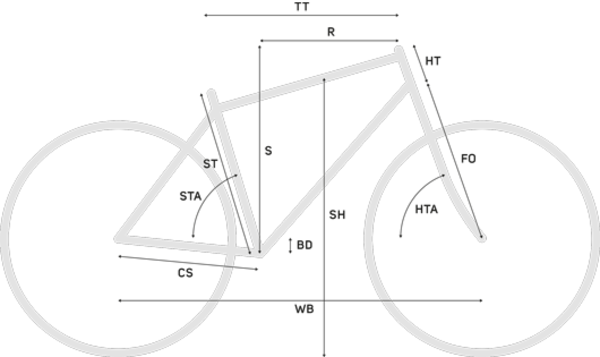

Frame Geometry - Merida eBig.Tour 300 2018

FRAME SIZES S(27.5) M(27.5) M(29) L(29)
TOP TUBE 560 580 580 600
SEAT TUBE 410 440 440 480
CHAIN STAYS 455 455 475 475
HEAD TUBE ANGLE 69 69 69.5 69.5
SEAT TUBE ANGLE 72.5 72.5 73 73
BOTTOM BRACKET DROP 50 50 70 70
HEAD TUBE LENGTH 135 145 135 145
FORK LENGTH 487 487 506 506
REACH 366 383 380 397
STACK 615.6 625 654 664
WHEEL BASE 1081 1101 1117 1138
STAND OVER HEIGHT 680.5 704 708 740

Sizing Guide - Merida eBig.Tour 300 2018

Size Guide

Find you the right size bike is just as important as the type of bike you want. Getting the wrong size bike can ruin anyone ride.

We always recommend that you visit us in store (find us here) where we can measure you and make sure you get the right size bike.

To give you a quick guide please follow the following link to Meridas’ frame size calculator.

We also offer a free bike set up using our … . This system uses state of the art lasers and software to make sure you bike is precisely setup to give you the best riding experience.
