Scott E-Silence Evo 2017

  • E-Silence 6061 Alloy Frame
  • Nuvinci Harmony N330 hub
  • Integrated Lights
  • Syncros Components
  • Shimano Hydr. Disc
£3899.00 Check Availability
Reset Options
Please complete options above before adding to your basket

Display

Brose ebike Display

Brose Display

eMotor

Brose ebike motor

Brose Motor

Battery

Brose ebike Battery

Brose 508Wh integrated Battery

Range & Speed

30 – 140 Power Assisted Miles*

Electric Assistance up to 15 mph

Scott electric bike logo - rightbike

The all NEW E-Silence Evo will change the way you look at getting around town. A revolutionary integrated, silent 508wh Brose Engine will get you where you are going faster and more comfortably than ever before. With integrated Supernova lights and clever carrying systems, you can feel at ease leaving the car at home, silence your city.

BROSE DRIVE UNIT

With 250W of power, the Brose engine can be considered one of the most performant units on the market with one of the best power to weight ratios.All this in a compact shape that weighs in at only 3400g and allows for a perfect integration into the frame. The easy-to-update engine software is key to maximize the performance of the different components. At speeds over 25km/h, the engine completely ceases its support in order to avoid any fricition that might impair power transfer.

Brose ebike motor
Brose ebike Display

BROSE DISPLAY

The display uses a hardened PMMA lens to ensure durability and function even in rainy conditions or when wearing gloves. With the remote, power and lights can be switched on and off, walk-assistance can be activated and assistance levels chosen.

Assistance Levels:

Cruise: 80% of assist

Tour: 240% of assist

Sport: 320% of assist

BROSE BATTERY

The batteries of the Brose system are customized to the needs of SCOTT. This was key in order to stick with the design concept of the E-Aspect. The battery of the E-Aspect features a capacity of 509WH and it has been tested thoroughly in a temperature range from -20°C to + 60°C.

Brose ebike Battery

Specifications

COLOR  White/Orange
FRAME SIZES
 S M L XL
FRAME  E-SUB 6061 Alloy
FORK  NEW Silence rigid
HEADSET  Glory Wheel / Tapered 1.5″ – 1 1/8″ semi integ. OD 50/61mm / ID 44/55mm
REAR DERAILLEUR  –
SHIFTERS  H3
BRAKES  Shimano BR-T8000 Disc
CRANKSET  FSA CK746 39T Conti
HANDLEBAR  Syncros UC1.5 620mm / 15° bend
HANDLEBAR STEM  Syncros UC1.5 with integrated Light
PEDALS  VP 615
SEATPOST  Syncros UC1.5 / 31.6 w. Int. Light
SADDLE  Syncros UC1.5
HUB (FRONT)  Shimano HB-M525
HUB (REAR)  Nuvinci N330 Harmony
CHAIN  Conti belt 1344
CASSETTE  20T Conti sprocket
SPOKES  Sapim double butted
RIMS  Rodi
TIRES  Schwalbe Marathon Supreme Performance 700x50c
LIGHTS  Front Integrated Supernova E3 Rear Integrated in Seatpost Supernova Tail Light 2
RACKS & FENDERS  Carrier with spring / Curana wide fenders Ursus kickstand
APPROX WEIGHTS IN KG  23.90
APPROX WEIGHTS IN LBS  52.69
MOTOR  Brose System 250W
BATTERY  Brose 508wh integrated Battery
DISPLAY  Brose Remote Display

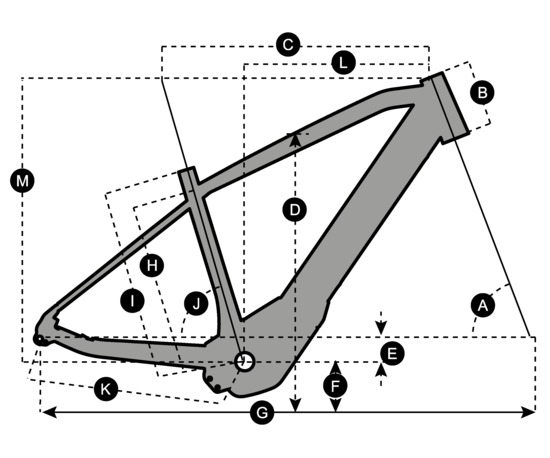

Frame Gemetry

 S  M  L  XL
A HEAD TUBE ANGLE 70.5 ° 70.5 ° 71.5 ° 71.5 °
B HEAD TUBE LENGTH 145.0 MM 5.7 IN 160.0 MM 6.3 IN 185.0 MM 7.3 IN 210.0 MM 8.3 IN
C TOP TUBE HORIZONTAL 578.5 MM 22.8 IN 598.5 MM 23.6 IN 618.5 MM 24.4 IN 638.5 MM 25.1 IN
D STANDOVER HEIGHT 781.4 MM 30.8 IN 810.8 MM 31.9 IN 845.2 MM 33.3 IN 884.2 MM 34.8 IN
E BB OFFSET -59.9 MM -2.4 IN -59.9 MM -2.4 IN -59.9 MM -2.4 IN -59.8 MM -2.4 IN
F BB HEIGHT 298.6 MM 11.8 IN 298.6 MM 11.8 IN 298.6 MM 11.8 IN 298.7 MM 11.8 IN
G WHEEL BASE 1,098.0 MM 43.2 IN 1,112.7 MM 43.8 IN 1,122.0 MM 44.2 IN 1,136.1 MM 44.7 IN
H BB CENTER TO TOPTUBE CENTER 385.0 MM 15.2 IN 425.0 MM 16.7 IN 465.0 MM 18.3 IN 515.0 MM 20.3 IN
I BB CENTER TO TOP OF SEATTUBE 440.0 MM 17.3 IN 480.0 MM 18.9 IN 520.0 MM 20.5 IN 570.0 MM 22.4 IN
J SEAT ANGLE 73.5 ° 73.0 ° 73.0 ° 72.5 °
K CHAINSTAY 460.0 MM 18.1 IN 460.0 MM 18.1 IN 460.0 MM 18.1 IN 460.0 MM 18.1 IN
L REACH 390.2 MM 15.4 IN 404.8 MM 15.9 IN 416.2 MM 16.4 IN 422.2 MM 16.6 IN
M STACK 632.7 MM 24.9 IN 632.6 MM 24.9 IN 660.6 MM 26.0 IN 684.3 MM 26.9 IN
N STEM LENGTH
0 TRAIL

Sizing Guide

Find you the right size bike is just as important as the type of bike you want. Getting the wrong size bike can ruin anyone ride.

We always recommend that you visit us in store (find us here) where we can measure you and make sure you get the right size bike.

To give you a quick guide please see the size guider to the left.

We also offer a free bike set up using our … . This system uses state of the art lasers and software to make sure you bike is precisely setup to give you the best riding experience.

Scott 2016 Bike Sizing Chart
