Scott E-Genius 730 2018

  • E-Genius 700 Plus Alloy Frame
  • Rock Shox 140mm Fork
  • X-Fusion Nude, TwinLoc Remote
  • Sram NX 11 Speed
  • Bosch CX, 500Wh ext. Battery
  • Shimano Deore Disc Brakes
  • Maxxis Rekon Kevlar Tires
  • Syncros Dropper Post and Parts
£3699.00 Check Availability
Reset Options

Display

csm_Bosch-eBike-Purion_8dc9d6aba7

Bosch Purion Display

Electirc Motor

Bosch Performance CX 250w

Battery

Bosch Performance CX 500wh Battery

Range & Speed

30 – 140 Power Assisted Miles*



Electric Assistance up to 15 mph

Scott electric bike logo - rightbike

The all SCOTT E-Genius 730 takes everything you love from the new Genius, but ads a bit of kick. With the Bosch Performance system, modern geometry, Sram 11 speed drivetrain and TwinLoc remote technology – explore the mountains like you never have before.

Product Details - Scott E-Genius 730 2018

BOSCH eMotor - Performance Line CX

Direct flow  Perfect support as soon as you step onto the pedals means that starting on steep slopes is significantly easier.

No trigger – Thanks to the new eMTB mode, there is no need to change support modes, so the rider can concentrate fully on the trail.

Trail Control – Enables effortless riding and optimal traction thanks to improved control, even on challenging uphill sections or when encountering difficult obstacles.

Maximum momentum – A torque of up to 75 Nm ensures sporty acceleration even in alpine terrain, without changing gear.

More walk-assistance power – Stronger support up to speeds of 6 km/h makes pushing your bike much easier. Available from autumn 2017 and backwards compatible for all Performance Line CX systems.

eMTB mode – For a powerful start uphill and in rough terrain. Improved moving-off behaviour guarantees optimal support in all terrains and on any trail. Noticeably easier, sporty starting as soon as you step onto the pedals.

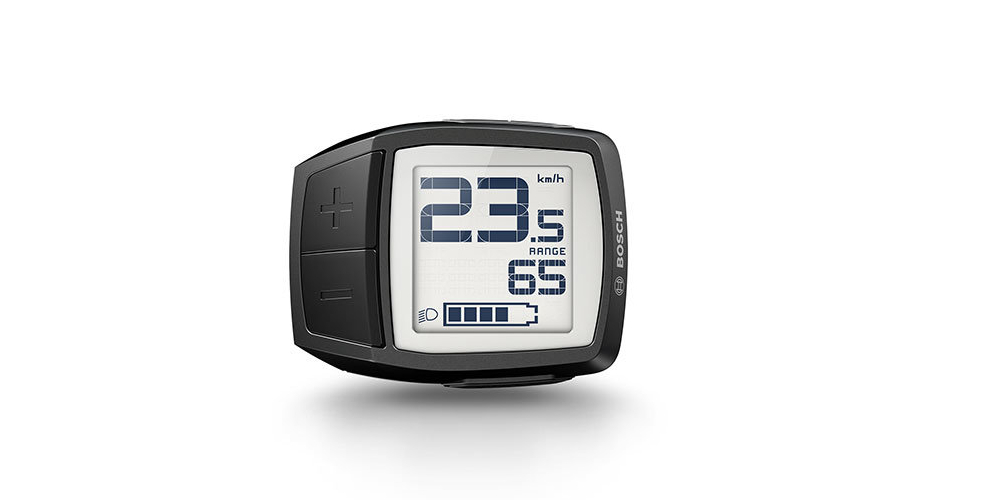

BOSCH DISPLAY- Purion

Clear display – Charging status, speed, riding mode, range, trip distance, total distance

Optimum legibility – The display without play lighted from behind enables recognising all riding data.

Service – The optional service interval display reminds you about fixing the next service appointment for your eBike with the specialist dealer.

Easy diagnosis – The specialist dealer can monitor the status of your Bosch eBike System via the micro USB interface.

Focus on the essentials – Five support steps, safe operation with thumbs, neat handle bar.

Assistance Levels – The rider can choose between four different modes:

  • Eco: Effective, but gentle support, designed for maximum efficiency for long ranges.
  • Tour: Uniform support for long stretches, with clear focus on long ranges.
  • Sport/eMTB*: Immediate, powerful support for sports riding on natural terrain and even in city traffic.
  • Turbo: Direct and maximum powerful support up to the highest pedalling rates for sports riding.

*The eMTB mode, specially designed for the Performance Line CX, dynamically varies between the Tour and Turbo riding modes, progressive motor support for maximum performance on the trail.

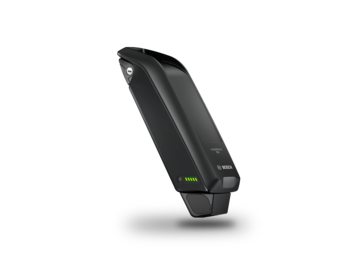

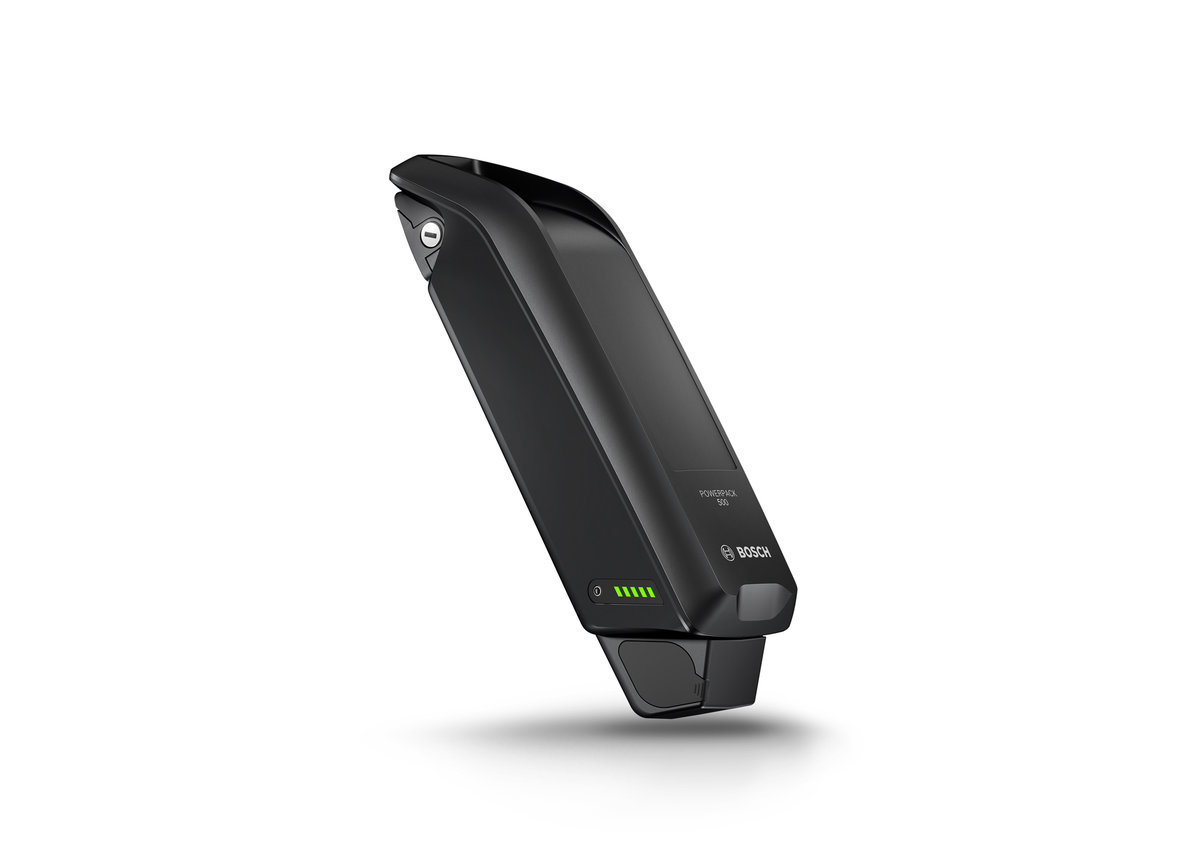

BOSCH Battery - 500Wh

The Bosch PowerPack 500 is the same size as and only slightly heavier than the PowerPack 400 but extends the range. The Lithium-ion battery requires about two hours to charge 50% and the PowerPack 500 takes approx. 4.5 hours to charge with the Bosch Standard Charger. In favourable conditions, charged and with the Performance Line Cruise in the mix, tours of up to 90 kilometres are possible. The PowerPack 500 is available for all product lines as a frame or rack battery.



 Compact Charger  Standard Charger
50% charge  3.75 h 2.25 h
100% charge 7.5 h 4.5 h

Specifications - Scott E-Genius 730 2018

Product Specifications

MotorBosch Performance CX 250W Motor - 25 km/h
BatteryBosch Performance 500wh Battery
DisplayBosch Purion Display, 4 mode selectable, walk assist
FrameE-Genius 700 Plus / 6061 Alloy custom butted tubes / tapered Headtube BB Height adj. 130mm travel
ForkRock Shox Recon RL Solo Air 15x110mm QR axle / Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 140mm travel
Travel-
Rear ShockX-Fusion NUDE SCOTT custom w. travel / geo adj. 3 modes: Lockout - Traction Control -Descend Reb. Adj. 190X50mm
BrakesShimano Deore M6000 Disc 203mm F & R / SM-RT64 CL Rotor
Brake Rotors-
Brake Levers-
ShiftersSram NX1 Trigger
SaddleSyncros XM2.5
SeatpostSyncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 120mm
Bottom Bracket-
CranksetMiranda Delta 15T +8.65mm
ChainSram PC1111
Front Derailleur-
Rear DerailleurSram NX1 / 11 Speed
Freewheel-
CassetteSram PG-1130 11-42 T
HandlebarSyncros FL2.0 STEPS mini Riser / Alloy 6061 12mm rise / 9° / 760mm Syncros Pro lock-on grips
Handlebar StemSyncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
HeadsetSyncros OE Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Wheelset-
RimsSyncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
TiresMaxxis / 2.80 x 27.5 / 120TPI Kevlar Bead DoubleDown / MaxxTerra / TR Tubeless ready Front: Minion DHF / Rear: Minion DHR II
Hubs-
Hub (front) Hub (Front) Shimano HB-M6010-B CL / 15x110mm
Hub (rear)Shimano ZEE FH-M645 / 12x150mm
SpokesStainless Black
Chainwheel-
Grips / Bartape-
Mudguards-
Rear Carrier-
Rack-
Pedals-
Lock-
Kickstand-
Lights-
Approx Weights In Kg22.80
Approx Weights In Lbs50.27

Frame Geometry - Scott E-Genius 730 2018

S / 900 S / 700 M / 900 M / 700 L / 900 L / 700 XL / 900 XL / 700
LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting
A head tube angle 64.8 ° 65.3 ° 64.8 ° 65.3 ° 65.1 ° 65.6 ° 65.1 ° 65.6 °
B head tube length 120.0 mm 4.7 in 120.0 mm 4.7 in 125.0 mm 4.9 in 125.0 mm 4.9 in 135.0 mm 5.3 in 135.0 mm 5.3 in 145.0 mm 5.7 in 145.0 mm 5.7 in
C top tube horizontal 586.5 mm 23.1 in 585.0 mm 23.0 in 606.6 mm 23.9 in 605.0 mm 23.8 in 636.7 mm 25.1 in 635.0 mm 25.0 in 666.7 mm 26.2 in 665.0 mm 26.2 in
D standover height 738.6 mm 29.1 in 736.0 mm 29.0 in 744.5 mm 29.3 in 742.0 mm 29.2 in 769.2 mm 30.3 in 766.7 mm 30.2 in 780.2 mm 30.7 in 777.8 mm 30.6 in
E BB offset -30.9 mm -1.2 in -23.5 mm -0.9 in -31.0 mm -1.2 in -23.5 mm -0.9 in -31.1 mm -1.2 in -23.5 mm -0.9 in -31.2 mm -1.2 in -23.5 mm -0.9 in
F BB height 342.6 mm 13.5 in 340.0 mm 13.4 in 342.5 mm 13.5 in 340.0 mm 13.4 in 342.5 mm 13.5 in 340.0 mm 13.4 in 342.4 mm 13.5 in 340.0 mm 13.4 in
G wheel base 1,215.8 mm 47.9 in 1,214.6 mm 47.8 in 1,236.7 mm 48.7 in 1,235.5 mm 48.6 in 1,259.0 mm 49.6 in 1,257.7 mm 49.5 in 1,290.7 mm 50.8 in 1,289.4 mm 50.8 in
H BB center to toptube center
I BB center to top of seattube 410.0 mm 16.1 in 410.0 mm 16.1 in 440.0 mm 17.3 in 440.0 mm 17.3 in 490.0 mm 19.3 in 490.0 mm 19.3 in 540.0 mm 21.3 in 540.0 mm 21.3 in
J seat angle 75.0 ° 75.5 ° 75.0 ° 75.5 ° 74.5 ° 75.0 ° 74.5 ° 75.0 °
K chainstay 462.0 mm 18.2 in 460.0 mm 18.1 in 462.0 mm 18.2 in 460.0 mm 18.1 in 462.0 mm 18.2 in 460.0 mm 18.1 in 462.0 mm 18.2 in 460.0 mm 18.1 in
L reach 418.6 mm 16.5 in 424.6 mm 16.7 in 437.4 mm 17.2 in 443.5 mm 17.5 in 458.7 mm 18.1 in 464.7 mm 18.3 in 486.3 mm 19.1 in 492.3 mm 19.4 in
M stack 624.2 mm 24.6 in 620.1 mm 24.4 in 628.9 mm 24.8 in 624.6 mm 24.6 in 639.8 mm 25.2 in 635.5 mm 25.0 in 649.1 mm 25.6 in 644.6 mm 25.4 in
N stem length 50.0 mm 2.0 in 50.0 mm 2.0 in 50.0 mm 2.0 in 50.0 mm 2.0 in 60.0 mm 2.4 in 60.0 mm 2.4 in 70.0 mm 2.8 in 70.0 mm 2.8 in
0 trail 119.9 mm 4.7 in 111.1 mm 4.4 in 119.8 mm 4.7 in 111.1 mm 4.4 in 117.5 mm 4.6 in 108.9 mm 4.3 in 117.4 mm 4.6 in 108.9 mm 4.3 in

Sizing Guide - Scott E-Genius 730 2018

Finding you the right size bike is just as important as the type of bike you want. Getting the wrong size bike can ruin anyone ride.

We always recommend that you visit us in store (find us here) where we can measure you and make sure you get the right size bike.

To give you a quick guide please see the size guide to the right.

We also offer a free bike set up using our … . This system uses state of the art lasers and software to make sure your bike is precisely set up to give you the best riding experience.

Scott 2016 Bike Sizing Chart
